Details

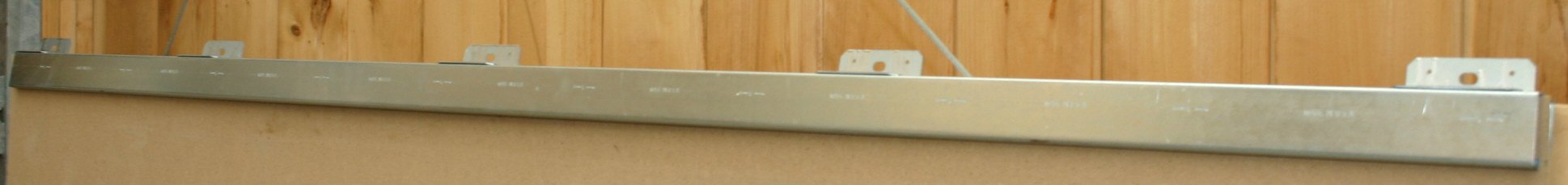

Designed for use on wooden or steel single sliding and by-passing doors up to 2¼" thick and weighing up to 450 lb. These galvanized steel rails have mounting brackets welded on at 2' centers which make installation especially easy. The rail is simply side-mounted onto the building using lag screws. If rail must be spliced, splicing brackets are not required as end brackets of each piece of rail will overlap the next length for perfect alignment and tight joint.

• rails are 2 ½” x 1 ¾”

• mounting brackets come up from rail 1¼”
